GOBEL GP-SR1-HC280-RN200W 51V 280Ah Lifepo4 Server Rack Battery Module

Product Specification:

Brand Name:

GOBEL, OEM&ODM

Model Number:

GP-SR1-HC280-RN200W

Nominal Voltage:

51.2V (@25℃)

Nominal Capacity:

280Ah (@25℃)

Nominal Energy:

14.34Kwh (@25℃)

Cycle Life:

>10000times

Communication interface:

RS485, CAN, RS232

Communication:

SMA, Growth att, Voltronic Power, Solis, Solax, Sungrowth, Sofar, Goodwe, etc.

Warranty:

15-year Service Life and 10-year Warranty

Product Description

GOBELENERGY is a professional, rich experienced, and strong technical team of lifepo4 battery manufacturers, integrating cell + BMS management + Pack structure design and customization. It focuses on the development and custom production of lithium iron phosphate batteries.

– We provide exclusive Protection of your distinct sales area, maximizing the benefit of our clients.
– Order, Be Small or Big, we will provide all the best quality, best service.

– We provide Customized design, OEM and ODM are warmly welcome.

– Shipping by Express, door-to-door service, Air Cargo Flight, and by Sea, are all available.

– We offer the highest quality at the best price and service.

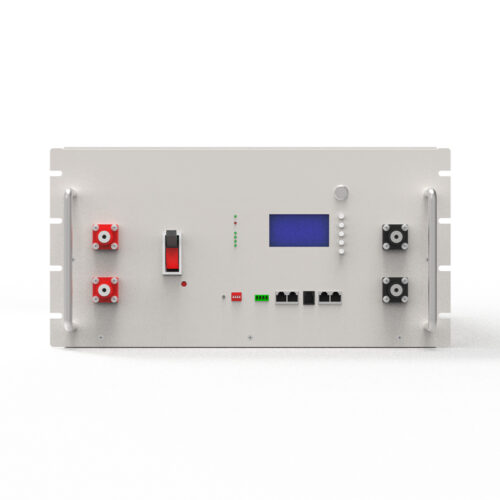

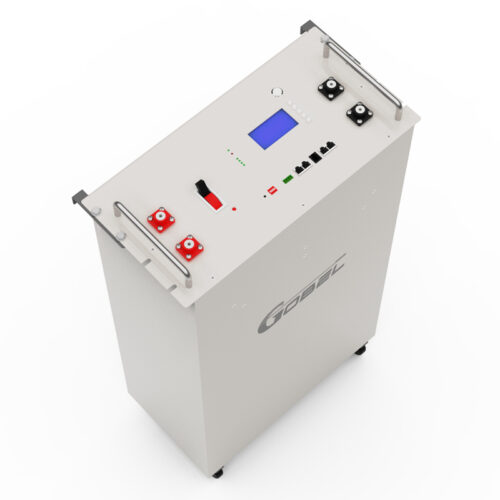

GOBEL GP-SR1-HC280-RN200W 51.2V 280Ah Rack Lithium LiFePO4 Battery Module

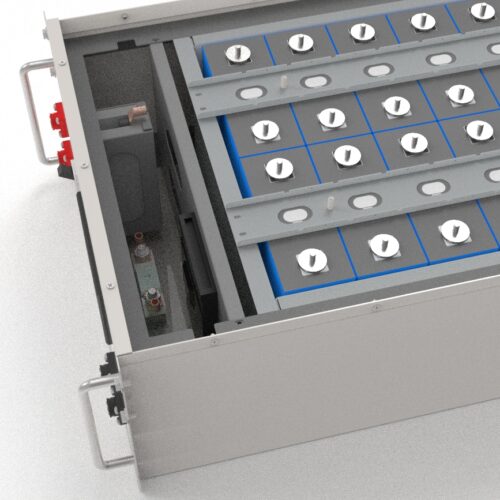

  • Cells Inside: Brand new Lithium 280Ah cells with 10,000 times cycles life (EVE LF280K Optional)

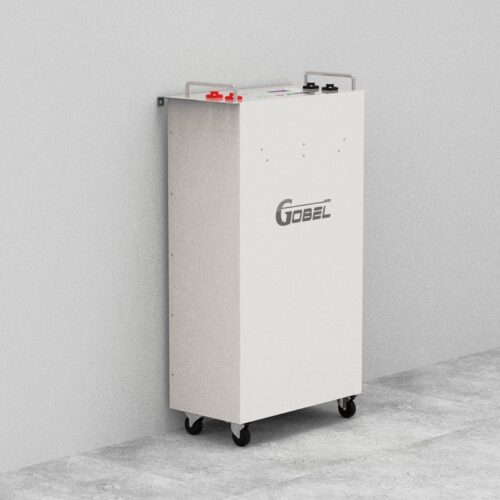

  • Mounting Method: Standard 6U server rack or on floor
  • BMS: 100A/150A/200A professional ESS BMS compatible with most inverters
  • Communication Ports: RS485, CAN, RS232
  • Active Balance: 5A Active Balance optional

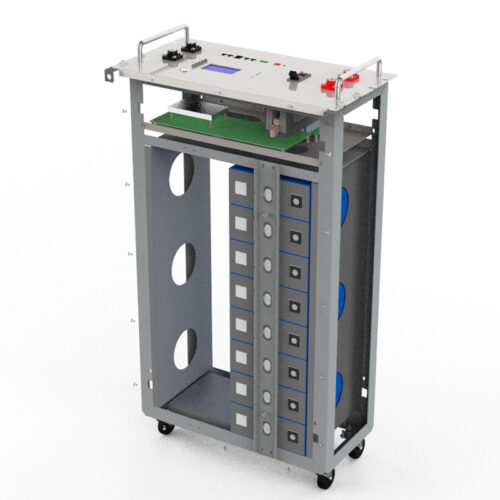

  • Compressed Cells: novel design able to impose 300kgf on cells



Product Specifications:
ModelGP-SR1-HC280-RN200W
Battery Cell TypeEVE, BYD, CATL etc.
Nominal Voltage51.2V
Nominal Capacity280AH
Nominal Energy14.34KWH
Battery Cells16S1P 280Ah Cells
Max. Continous Charge Current @25℃280AH
Max. Pulse charge Current @25°C,10s300AH
Max. Continous Discharge Current @25℃280A
Max. Pulse Discharge Current @ 25°C, 10s300A
DC Resistance≤150mΩ
Charge Cut-off Protect Voltage58V
Disharge Cut-off Protect Voltage40V
Operate Temperature Charge: 0˚C~55˚C;
Discharge: -20˚C~60˚C;
Storage: -20˚C~45˚C
Communication PortRS485, RS232, CAN
Parallel ConnectionMax 15 Units in Parallels
Series ConnectionNo

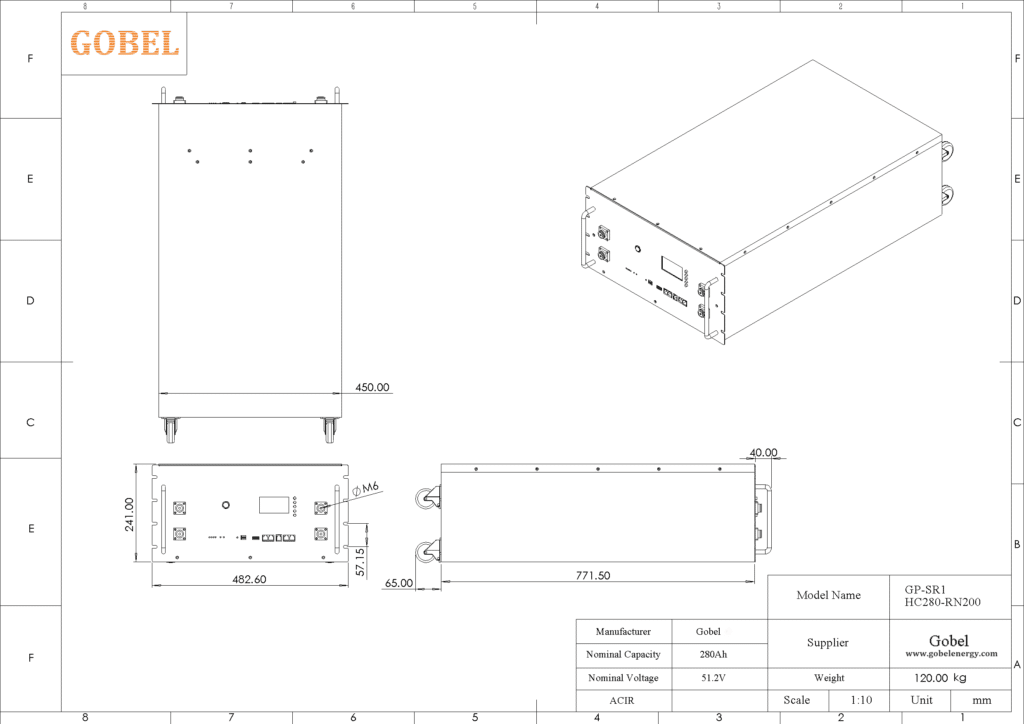

Dimension (mm)482.6*771.5*241mm
Weight (KG)110KG
Service Life15 years
Warranty10 years
OptionalBluetooth/ Fast Fuse/ Circuit Breaker/ Wheels

Wide Range of Applications

* Home energy storage

* FTTB, FTTH, RRU, BBU, and other small mobile communication fields

* Suitable for communication base stations, central computer rooms, and other communication energy storage scenarios



Cooperative and Adapted Companies

GOBEL Certificate

Factory Show

High-Quality Cells

Battery Test

Production Line

Battery Cabinets

The Stock

Delivering

Shipping and Payment

FAQ

Q: What is special about lithium batteries?

A: With high energy density, it has reached 460-600Wh/kg, which is about 6-7 times that of lead-acid batteries. Long service life, the life span can reach more than 6 years. Lightweight, the weight is about 1/5-6 of the lead-acid product under the same volume.

Q: What is a lithium battery used for?

A: Lithium battery used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, Small processing factory, surveillance or alarm systems in remote locations.

Q: Are your batteries safe?

A: Our batteries are safe. All GOBEL batteries use the safest and most stable components, including a LiFePO4 cathode and a built-in Battery Management System (BMS). The BMS protects the cells against excessively high or low voltages, high currents, short circuits, and excessive heat or cold. These are the most common causes of battery failures, and we have taken every precaution to mitigate these risks in all of our batteries.

Q: Can it be series or parallel for use?

A: Yes sir, it can support max. 15 in parallel connection for use, Max 150kwh storage box

Q: What is a lithium battery used for?

A: Lithium battery used for power and energy storage. Like emergency power backup or UPS. Dependable electric and recreational vehicle power, golf cart, reliable and light-weight marine, solar power storage, solar house, Small processing factory, surveillance or alarm systems in remote locations.

Q: Can these battery packs be compatible with my inverter? do you have a company list of the inverter which is compatible?

A: Yes sir, our battery pack can compatible with most brands of inverters on the market, such as Deye, MUST, SMA, Growatt, Solax, Solis, Sungrow, Sofar, Voltronic, Sorotec, Studer, etc. contact us and let me tell you more.
